The Automation Evolution: The almost PC PLC Story


The current generation of computers would not exist without the knowledge gained by industrial communication revolution. The concept of a programmable logic controller (PLC) was the overriding idea to replace thousands of hard-wired relays, cam timers, sequencers and loop controllers that operated in manufacturing plants the world over. The invention of the integrated circuit (microchip) in 1958 was a great leap forward for both computers and PLC's and for all of us who use computers today. The impact of the microchip at first was not easily understood. Eventually the manufacturing of the microchip would reduce the cost electric functions by a factor of about a million to one.

The development of the microchip didn't happen overnight and it didn't fully integrate into manufacturing until the late 1960's. In 1962 the first computer game was made. Spacewar was invented by Steve Russell at MIT. Does that shatters the allusion that porn was the driver for the first computer game.

The Modicon team with the 084 PLC

If you build it, they MAY... consider using it?

If you look at the United States manufacturing alone, it was the GM Hyramatic the "automatic transmission division" of General Motors that started the push for programmable logic. GM thought they could build computers to replace relays, timers, sequencers and closed-loop controllers. Believe it or not computers in the "Dark Ages" required large, clean, well air-conditioned rooms to operate properly. You have to love punch cards. Computers would not operate on the manufacturing floor and they would not fit into a small space. Computers in the 1960's could not be moved room to room and you needed ear plugs to work near the processors. GM thought it was cost prohibitive to build and move computers so they challenged outside companies to design something new.

My guess is that they were sick of having to manually move and rewire thousands of hard-wired relays, cam timers, sequencers, and other electrical connections every year when a new car model came down for manufacturing. In 1968 GM requested a proposal for a replacement to their hard-wired relay systems. The core plan was to build a task orientated mechanism that could work in the manufacturing work environment. The device would also need to be reliable and reprogrammable. The PLC would be an sequential control computer built to run functions blocks for all equipment and relays. GM intended to make the giant electric erector set computer fit into one small box.

Bedford Associates designed the 084 (project 84) and the Modicon (Modular Digital Controller) was born. The good old 084, was it Barbra Streisand? memories like the corners of my mind?

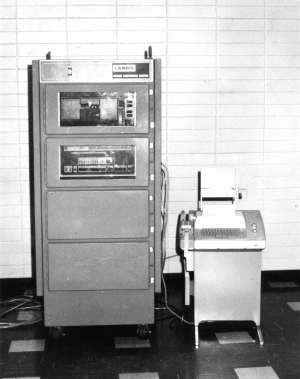

This is the Modicon 084 PLC

Although more than one person worked on the PLC project, Dick Morley is called the "father" of the modern PLC. I invite you to read about Mr. Morley he is without a doubt quite the character. Either way you look at it the PLC called 084 provided almost twenty years of continuous service before it was retired. How many home computer have you had in the last twenty years? Have you been using a computer for twenty years?

Now that's Logical? Does everyone remember where we parked ?...

Early logic was represented as a series of Boolean algebra equations. With Boolean calculations logic could be programmed and be automated in a relative sequence. Automatically turning functions on or off essentially making it possible for devices to operate. With the logic represented with a True or False, On or Off, 1or 0 the complete functions could be repeated over and over. Automation was now as simple as the light switch. It was a great leap forward with its simplicity because a light switch is either up or down, the door is Open or Closed the machine is Running or Stopped. The problem was you could not differ from the program or determine the state of a function. What if you walk into a room with two light switches and three doors? One light switch may be up and the other may be down, the door on the left is 30% closed or 70% open. If this happens will that difference interrupt and stop the sequence of programming? Yes the early PLC programming lacked simple State Logic programming and it was a problem.

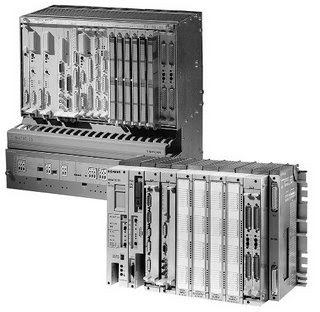

This is the 084 Travel PLC

My early experiences with this type of logic was programming a CNC turret Punch Press, it included loading "punch paper " (punch paper: is a long roll of paper tape with a series of holes punch it) into an automated punch press. Everything worked great until you needed to change the placement of a cutout. To change the position or state of anything you would need to edit the program on the tape while the equipment performed the set task. We did not have a way to view the logic so we ran the program until we found the action we needed to change. At that point we would manually change the punched paper and restart, all because you could not see the logic to make changes left to right punch.

"Ladder Lister" is a statement based PLC programming language. The introduction of Ladder logic allowed for " If?.. Then" statement programming. In 1979 Modicon introduced Modbus ,RTU (remote terminal units) and ASCII. Modbus later became the standard. Modbus was designed to allow communication between 240 devices on the same network and was a major step forward. In the mid 1980s PLC proprietary programming panels were introduced and interactive terminals evolved to control dedicated functions. For manufacturers the PLC more than met their needs and to top it off ladder logic empowered more than basic control. With a screen and programming you could read the state and control all attached equipment on the PLC from one location, with the fast reliable Modbus system speed and fixed controller you could perform all actions in real time and bypass failed devices.

Today we use touch screens attached to PLC controllers to provide full control and automate all of the equipment on a multiple manufacturing floors simultaneously.

PLC's are still evolving to meet the need of the environments they are in. PLC's are used in industrial manufacturing systems, residential logic systems, marine or shipboard monitoring control systems and much more. Communications have leapt forward as well with PLC's utilizing Modbs with TCP/IP and UDP supporting 32 bit Integer and Floating Point variables. PLC's are used to control lighting, HVAC systems, security systems, CCTV monitoring, motorized curtains and awnings, computer networking and logistics, electrical generators and even in remote access phone systems with event driven messaging. The next time you drive through an intersection you are driving past a PLC controlled system. PLC controllers still utilize serial port communications.

Do PLC's have any future controlling tomorrow's devices?

The short answer is. Yes? Apple may already have an app for that. What will the future hold?

  • 1. Most computers manufactured today do not or use or design in serial communication ports to their laptops. If you get a new laptop you need a USB to Serial connector. I would design a Bluetooth or wireless connection module for this problem. If PLC manufacturers do not wish to go that far an Ethernet CAT5e connection, USB 2.0, or Thunderbolt (good luck with that one) would do.

  • 2. When connected to a controller most programs operate at 32 bit. Most new computers come with 64 bit OS standard and most PLC communication is still 16 bit or floating 32 bit integers. PLC logic needs to catch up to the modern computer systems design s and fully adapt to the double register system. For the most part in-house programming and designer may be forced to handle the changes themselves.

  • 3. Most manufacturers need to catch up to the times. New PLC systems are designed every year but used PLC systems are quickly repurposed. The truth is manufacturers are often not interested in investing in new technology. "My Windows Me machine does everything I need."
  • These companies will need to be pushed, pulled and prodded into the future. Cost savings from old systems infrastructure will make it difficult to push for the future.

  • 4. Memory, processors and speed. PLC processing is generally handled over a closed network. To stay ahead of the game they should be designed or include a bigger brain and more memory. The amount of packets handled should be increased and broadcast failure should be prevented.
